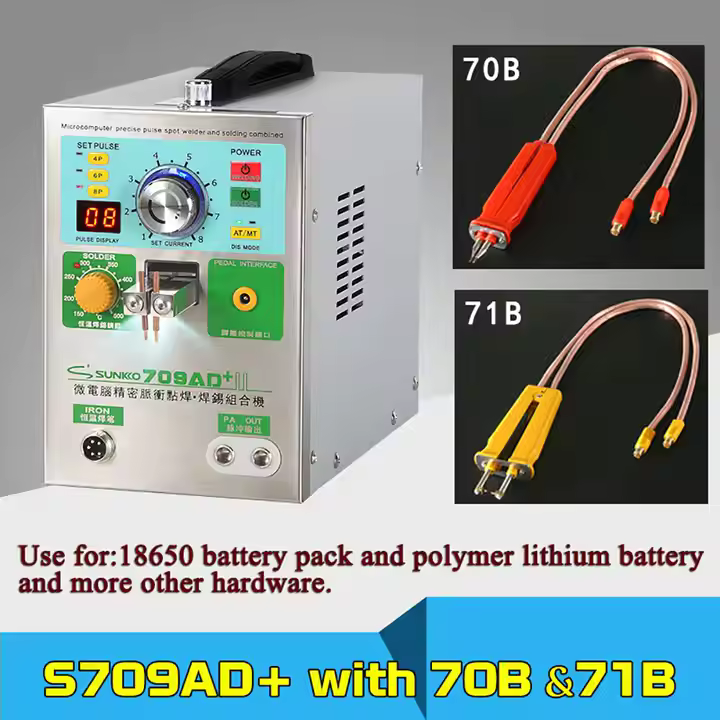

Sunkko 709AD+ Battery Spot Welder With Soldering Function - Use For Battery Pack Rebuilds

Sunkko 709AD+ Battery Spot Welder With Soldering Function - Use For Battery Pack Rebuilds

4 Welding Options:

1. Fixed Welding Head
2. Fixed Welding Head W/ Foot Pedal
3. Mobile Welding Pen W/ Foot Pedal (MT)

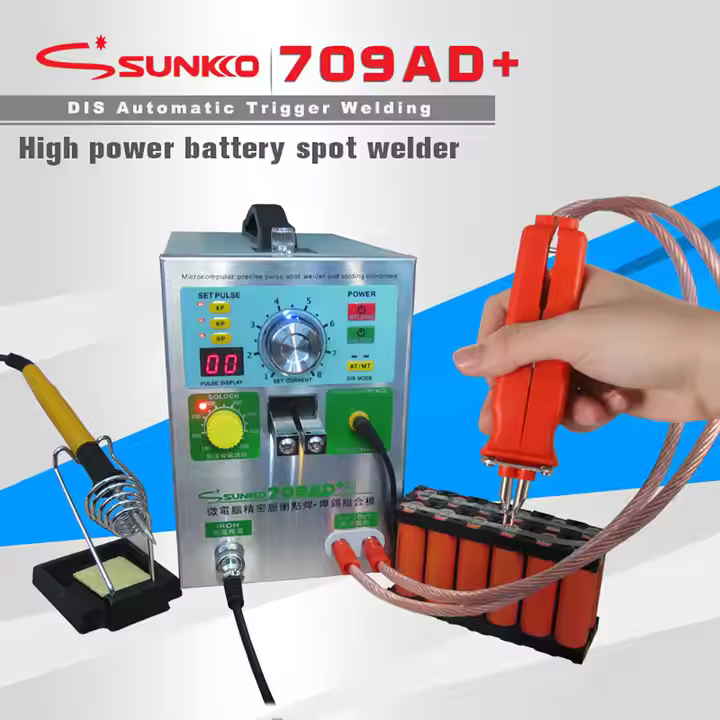

4. Mobile Welding Pen W/O Pedal (AT)

Weld nickel strips between 0.05mm - 0.3mm thick for nickel plated steel. Weld nickel strips between 0.05mm - 0.25mm thick for pure nickel strips. CANNOT weld metal like copper or aluminum.

Additional Features: LED Light Indicator, Welding Pressure Adjuster, Auto Cooling Fan

Specification for welding part:
Input voltage: AC 110 V/220 V±10%
Welding current: 50 ~ 800 A
Single pulse time: 5ms
Max. pulse quantity: 18
Max. power output: 3.2 KW (instantaneous)
Fixed welding part:
Welding thickness for nickel plated steel: 0.05 ~ 0.3 mm
Welding thickness for pure nickel: 0.05 ~ 0.25 mm
Mobile welding part:
Welding thickness for nickel plated steel: 0.05 ~ 0.2 mm
Welding thickness for pure nickel: 0.05 ~ 0.15 mm

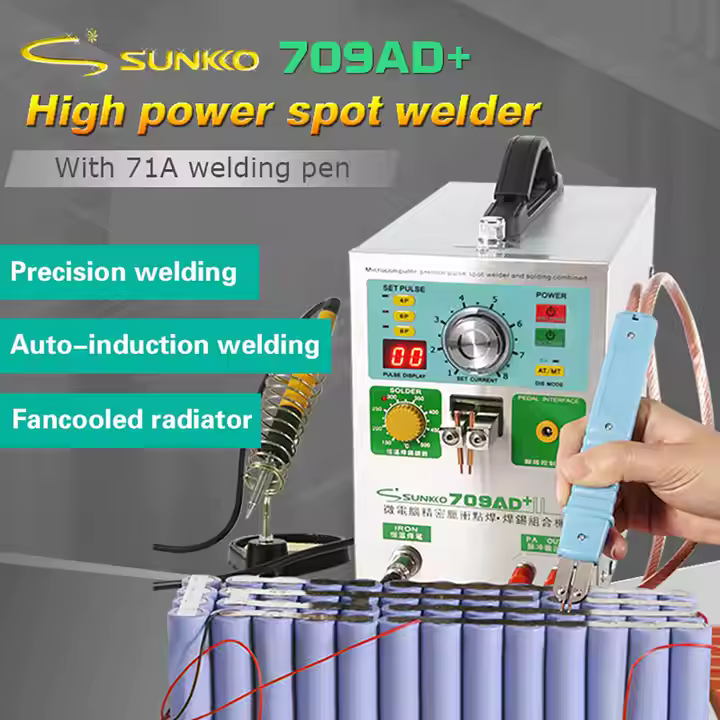

Specification for mobile welding pen:
Welding needle distance (adjustable): 4 - 10 mm
Total length: 22.4"
Cable cross sectional area: 16 mm2
Dimension of welding needle: 1.5 x 7 mm

Specification for soldering part:
Temperature range: 150~500°C(302~932°F)(up to 300°C within 7 seconds)
Soldering station power: 50 W
Output voltage: DC 20 V
Tips for soldering part:
1. You need to keep the welding part on before you use the soldering function.
2. The core and the case of soldering pen are separable, for new products, if the
soldering pen doesn’t work, it may caused by the poor connection between case and core due to transportation. Please pull out the core and then insert it back into case,
and try again.

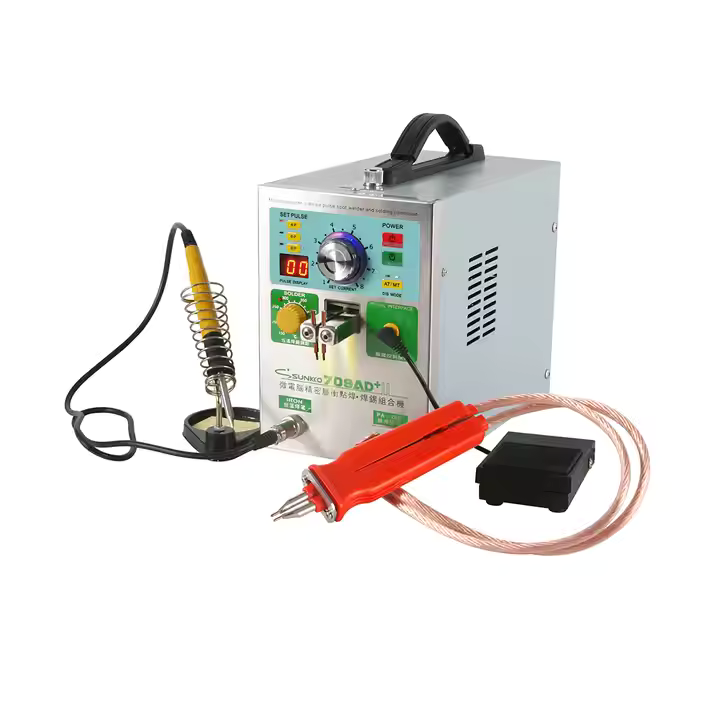

Includes:

• 709AD+ Machine
• Soldering Pen W/ Stand (1 PC)
• 70B Mobile Welding Pen (1 PC)
• Copper Welding Rods (2 Pairs)
• Mini Grinder (1 PC)
• USB Cable (1 PC)
• Foot Pedal (1 PC)
• Battery Fixture (1 PC)
• Fuse (2 PC)
• Hexagon Wrench (1 PC)
• 0.15mm x 8mm x 100mm Nickel Plated (50 PCS)
• 0.1mm x 4mm x 100mm Nickel Plated (50 PCS)
• Manual
